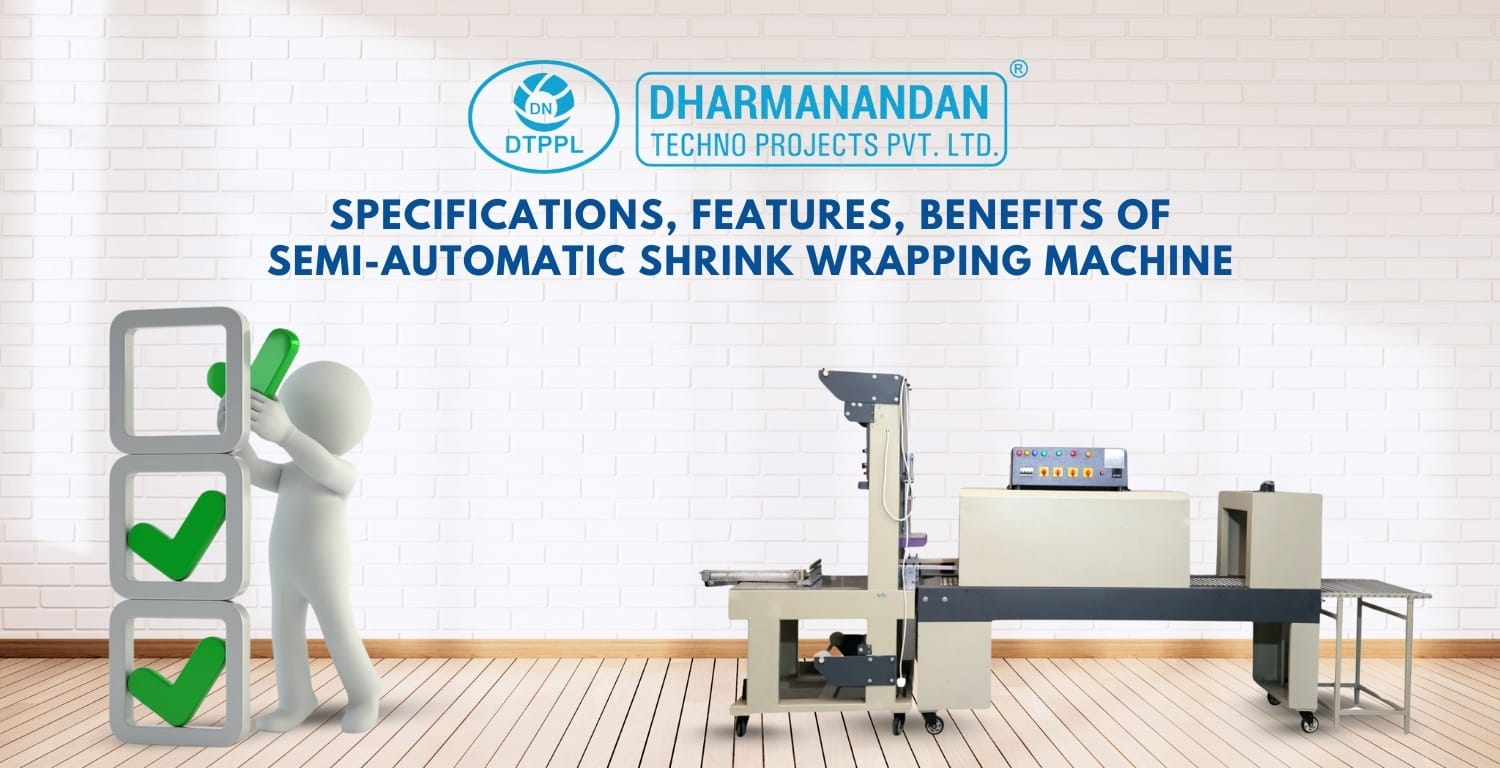

Introduction: Practical Packaging for Scaling Brands
Semi-Automatic Shrink Wrapping Machines are essential for businesses in the growth phase—those managing varied product SKUs or requiring reliable, budget-friendly bundling, especially in the mineral and packaged drinking water sectors. Unlike fully automated systems, which are ideal for high-speed environments, semi-automatic units offer a balanced middle ground. They automate sealing and shrinking operations after manual product collation, improving efficiency while keeping costs manageable.
This comprehensive guide outlines technical specifications and configurations for dependable semi-automatic shrink wrapping solutions. Typically combining a sleeve wrapper and shrink tunnel, these machines are tailored to the needs of mineral water packaging plants. We also examine how machine features align with output goals, enabling businesses to boost throughput and product appearance without a full automation investment.

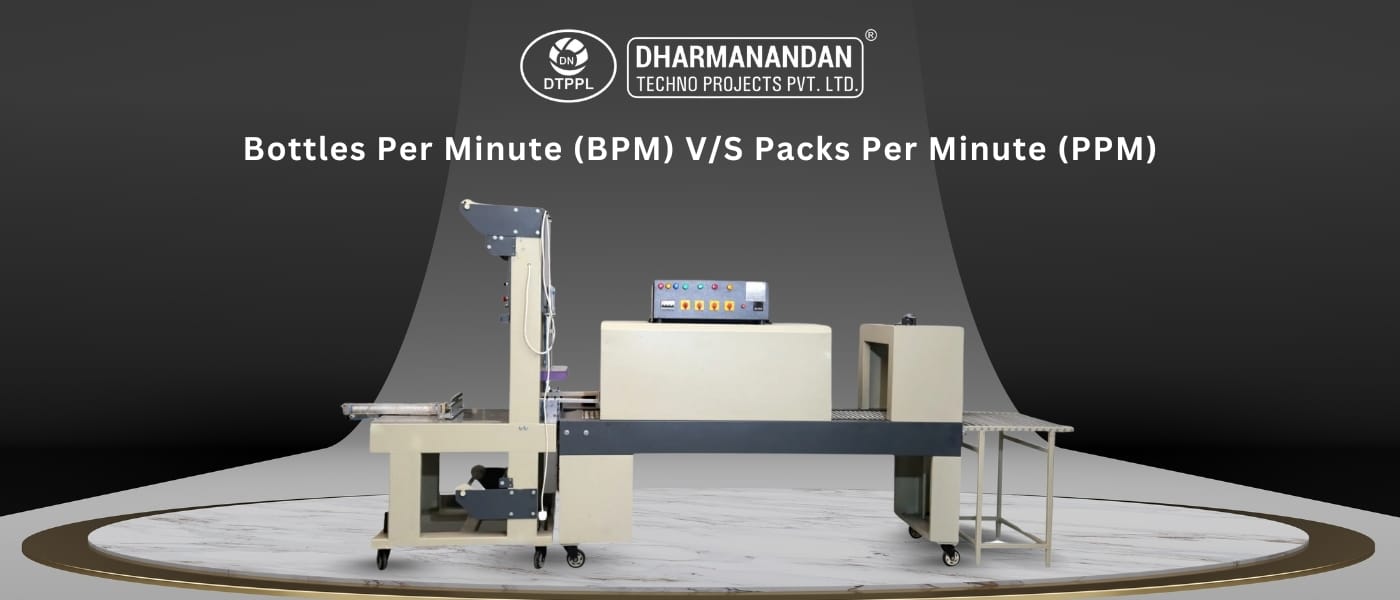

Understanding Output Terminology: BPM vs. PPM
In shrink wrapping, performance is often evaluated in Packs Per Minute (PPM) instead of Bottles Per Minute (BPM), as the machine processes grouped bottles. While you may request details in BPM, we interpret these into PPM based on typical configurations (e.g., packs of 6 or 12 bottles). For instance, a 60 BPM rate (with 6-bottle packs) corresponds to roughly 10 PPM. For clarity, this guide will use PPM based on that conversion
Design Parameters and System Overview
- Use Case: For wrapping collated PET bottle bundles (e.g., 2×3, 3×4) in packaged water operations.
- Workflow: Operator manually places bottles; machine seals and transfers them to the shrink tunnel.
- Film: Low-Density Polyethylene (LDPE), thicker than typical product films, suited for bundle integrity.
- Seal Method: Constant heat sealing bar or hot knife for secure, durable seals.
- Frame Options: Mild Steel (MS) with powder coating is standard; Stainless Steel (SS) versions are offered for wet zones.
- Utilities: Requires electricity and compressed air (for pneumatic models). Power consistency is vital.
- Operator Impact: Output hinges on operator coordination, loading speed, and consistent utility supply.
Click Here to Watch Semi Automatic Shrink Wrapping Machine
Technical Considerations with Rising Throughput (PPM)
As required PPM increases, so do the machine demands:
- Sealing Bar Width: Larger bars accommodate wider bundles.
- Pneumatic Pusher: Improves consistency and aids operators.
- Shrink Tunnel Design:
- Aperture Size: Must clear the maximum bundle dimensions.
- Tunnel Length: Longer tunnels increase belt speed while retaining optimal shrink time.
- Heating Power: Higher throughput needs more kW to sustain heat.
- Cooling Zone: Stronger fans and longer cooling sections are required for quicker post-wrap handling.
- Build Quality: Sturdier components for higher-speed reliability.
Specifications for Up to 8 PPM Semi-Automatic Shrink Wrapper
| Parameter / Component | Specification Details | Quantity | Notes |
|---|---|---|---|
| Nominal Capacity | Up to ~8 Packs Per Minute (PPM) (Operator Dependent) | Approx. equivalent to ~30-50 BPM line speed (6-bottle pack) | |
| Machine Type | Semi-Automatic Sleeve Wrapper + Shrink Tunnel | 1 Set | Standard configuration for bundling. |
| Max Pack Size (LxWxH) | Specify required range (e.g., up to 600mm L x 400mm W x 350mm H) | Must accommodate your largest bundle format. | |
| Sealer Unit: | |||
| Sealing Method | Constant Heat Sealing Bar/Knife (Teflon Coated) | 1 No. | Suitable for PE film. |
| Sealing Bar Length | Appropriate for Max Pack Width (e.g., 450mm – 650mm) | 1 No. | |
| Sealing Operation | Pneumatic (Requires Air) or Manual (Less common) | Pneumatic standard for consistency. | |
| Film Roll Holders | Top & Bottom Spindles with basic tension adjustment | 1 Set | |
| Product Loading | Manual Collation onto Loading Table / Infeed Area | Operator dependent. | |
| Pusher Mechanism | Optional (Manual push or basic Pneumatic assist) | Optional | |
| Shrink Tunnel: | |||
| Conveyor Type | Mesh Belt (Metal or Teflon coated) or Roller Conveyor | 1 No. | Mesh belt common. |
| Conveyor Speed | Variable Speed (e.g., 2-10 meters/minute) | Adjustable for different shrink times. | |
| Tunnel Aperture (WxH) | Sufficient for Max Pack Size + Clearance (e.g., 500mm W x 400mm H) | Ensure clearance. | |
| Tunnel Length | ~1000mm – 1500mm (Heating Zone) | Longer tunnel allows faster speed for same dwell time. | |
| Heating Power | ~8 – 15 kW (Finned Heaters common) | Depends on size and speed. | |
| Temperature Control | Digital Temperature Controller | 1 No. | Essential for consistent shrinking. |
| Air Circulation | Internal Blower/Fan | 1 No. | For even heat distribution. |
| Cooling Zone | Fan at Tunnel Exit (Optional but recommended) | Optional | Helps set the film quickly. |
| Control Panel | Basic Controls: Power On/Off, Sealer Temp, Tunnel Temp, Conveyor Speed, Seal Timer | 1 No. | Simple, reliable controls. |
| Construction | Main Frame: MS Powder Coated (Standard), SS Frame/Contact Parts Option available | 1 Lot | MS is cost-effective; SS better for wet areas/longevity. |
| Required Utilities (Typical) | Power: ~10-18 kW (Mainly Tunnel Heating), Compressed Air: ~5-6 bar (if pneumatic sealer/pusher) | Power stability is important for heating elements. |
Specifications for Up to 12 PPM Semi-Automatic Shrink Wrapper
| Parameter / Component | Specification Details | Quantity | Notes |
|---|---|---|---|
| Nominal Capacity | Up to ~12 Packs Per Minute (PPM) (Operator Dependent) | Approx. equivalent to ~60-80 BPM line speed (6-bottle pack) | |
| Machine Type | Semi-Automatic Sleeve Wrapper + Shrink Tunnel | 1 Set | |
| Max Pack Size (LxWxH) | Specify required range (e.g., up to 650mm L x 450mm W x 380mm H) | May need slightly larger capability. | |
| Sealer Unit: | |||
| Sealing Method | Constant Heat Sealing Bar/Knife (Teflon Coated) | 1 No. | |
| Sealing Bar Length | Appropriate for Max Pack Width (e.g., 550mm – 750mm) | 1 No. | |
| Sealing Operation | Pneumatic | Standard at this speed. | |
| Film Roll Holders | Top & Bottom Spindles with improved tension adjustment | 1 Set | |
| Product Loading | Manual Collation onto Loading Table / Infeed Area | Operator skill critical for speed. | |
| Pusher Mechanism | Pneumatic Pusher (Recommended / Often Standard) | 1 No. | Assists operator, improves consistency. |
| Shrink Tunnel: | |||
| Conveyor Type | Mesh Belt (Metal or Teflon coated) or Roller Conveyor | 1 No. | |
| Conveyor Speed | Variable Speed (e.g., 3-15 meters/minute) | Wider speed range needed. | |
| Tunnel Aperture (WxH) | Sufficient for Max Pack Size + Clearance (e.g., 550mm W x 450mm H) | ||
| Tunnel Length | ~1500mm – 1800mm (Heating Zone) | Longer tunnel needed for higher throughput. | |
| Heating Power | ~15 – 25 kW | Increased heating capacity required. | |
| Temperature Control | Digital Temperature Controller | 1 No. | |
| Air Circulation | Enhanced Internal Blower/Fan System | 1 No. | More airflow needed. |
| Cooling Zone | Fan at Tunnel Exit (Standard) | 1 No. | More important at higher speeds. |
| Control Panel | Basic Controls + Cycle Counter (Optional) | 1 No. | |
| Construction | Main Frame: MS Powder Coated (Standard), SS Frame/Contact Parts Option available | 1 Lot | |
| Required Utilities (Typical) | Power: ~17-28 kW, Compressed Air: ~6-7 bar |
Specifications for Up to 18 PPM Semi-Automatic Shrink Wrapper
| Parameter / Component | Specification Details | Quantity | Notes |
|---|---|---|---|
| Nominal Capacity | Up to ~18 Packs Per Minute (PPM) (Operator Dependent, requires efficient loading) | Approx. equivalent to ~90-120 BPM line speed (6-bottle pack) | |
| Machine Type | Semi-Automatic Sleeve Wrapper + Shrink Tunnel | 1 Set | |
| Max Pack Size (LxWxH) | Specify required range (e.g., up to 700mm L x 500mm W x 400mm H) | Robust sealing needed for potentially larger packs. | |
| Sealer Unit: | |||
| Sealing Method | Constant Heat Sealing Bar/Knife (Heavy Duty, Teflon Coated) | 1 No. | Heavy-duty construction needed. |
| Sealing Bar Length | Appropriate for Max Pack Width (e.g., 650mm – 850mm) | 1 No. | Wider bar capability. |
| Sealing Operation | Pneumatic | ||
| Film Roll Holders | Top & Bottom Spindles with robust tension control | 1 Set | |
| Product Loading | Manual Collation onto Loading Table / Short Infeed Conveyor | Operator efficiency is key bottleneck. | |
| Pusher Mechanism | Pneumatic Pusher (Standard) | 1 No. | Essential at this speed. |
| Shrink Tunnel: | |||
| Conveyor Type | Mesh Belt (Metal or Teflon coated) or Roller Conveyor | 1 No. | Robust conveyor needed. |
| Conveyor Speed | Variable Speed (e.g., 4-18 meters/minute) | Even wider speed range. | |
| Tunnel Aperture (WxH) | Sufficient for Max Pack Size + Clearance (e.g., 600mm W x 500mm H) | ||
| Tunnel Length | ~1800mm – 2200mm (Heating Zone) | Longer tunnel allows sufficient dwell time. | |
| Heating Power | ~25 – 35 kW | Substantial heating power. | |
| Temperature Control | Digital Temperature Controller (PID Control recommended) | 1 No. | PID control offers better temperature stability. |
| Air Circulation | High Capacity Blower/Fan System with Adjustable Airflow | 1 No. | Adjustable airflow helps optimize shrink. |
| Cooling Zone | Enhanced Fan Cooling at Tunnel Exit | 1 No. | Effective cooling crucial. |
| Control Panel | Controls + Cycle Counter, Safety Relays | 1 No. | |
| Construction | Main Frame: Heavy Duty MS Powder Coated (Standard), SS Frame Option highly recommended for durability | 1 Lot | Robust frame essential. |
| Required Utilities (Typical) | Power: ~28-40 kW, Compressed Air: ~7-8 bar | Significant power draw. |
Specifications for Up to 25 PPM Semi-Automatic Shrink Wrapper
| Parameter / Component | Specification Details | Quantity | Notes |
|---|---|---|---|
| Nominal Capacity | Up to ~25 Packs Per Minute (PPM) (Highly Operator Dependent, Peak Rate) | Approx. equivalent to ~120-150 BPM line speed (6-bottle pack). Very demanding for operator. | |
| Machine Type | Semi-Automatic Sleeve Wrapper + Shrink Tunnel (High Output Semi-Auto) | 1 Set | Pushing the limits of semi-automatic operation. |
| Max Pack Size (LxWxH) | Specify required range (e.g., up to 750mm L x 550mm W x 400mm H) | ||
| Sealer Unit: | |||
| Sealing Method | Constant Heat Sealing Bar/Knife (Heavy Duty, Teflon Coated) | 1 No. | |
| Sealing Bar Length | Appropriate for Max Pack Width (e.g., 750mm – 950mm) | 1 No. | |
| Sealing Operation | Pneumatic | ||
| Film Roll Holders | Top & Bottom Spindles with robust tension control | 1 Set | |
| Product Loading | Manual Collation onto Loading Table / Short Powered Infeed Conveyor | Requires very skilled and fast operator(s). | |
| Pusher Mechanism | Pneumatic Pusher (Standard, potentially faster acting) | 1 No. | |
| Shrink Tunnel: | |||
| Conveyor Type | Roller Conveyor (often preferred for heavy bundles) or Heavy Duty Mesh Belt | 1 No. | |
| Conveyor Speed | Variable Speed (e.g., 5-20+ meters/minute) | High maximum speed required. | |
| Tunnel Aperture (WxH) | Sufficient for Max Pack Size + Clearance (e.g., 650mm W x 500mm H) | ||
| Tunnel Length | ~2000mm – 2500mm+ (Heating Zone) | Very long tunnel needed. | |
| Heating Power | ~35 – 50+ kW | Significant heating power. | |
| Temperature Control | Digital Temperature Controller (PID Control Standard) | 1 No. | Precision temperature control vital. |
| Air Circulation | High Capacity Blower/Fan System with Adjustable Airflow | 1 No. | |
| Cooling Zone | High Efficiency Fan Cooling at Tunnel Exit | 1 No. | Critical for handling packs at this speed. |
| Control Panel | Controls + Cycle Counter, Safety Relays | 1 No. | |
| Construction | Main Frame: Heavy Duty MS Powder Coated or SS Frame Recommended | 1 Lot | Built for high throughput semi-auto operation. |
| Required Utilities (Typical) | Power: ~40-60+ kW, Compressed Air: ~8 bar | Major power requirement. |
Click Here to Watch Semi Automatic Shrink Wrapping Machine

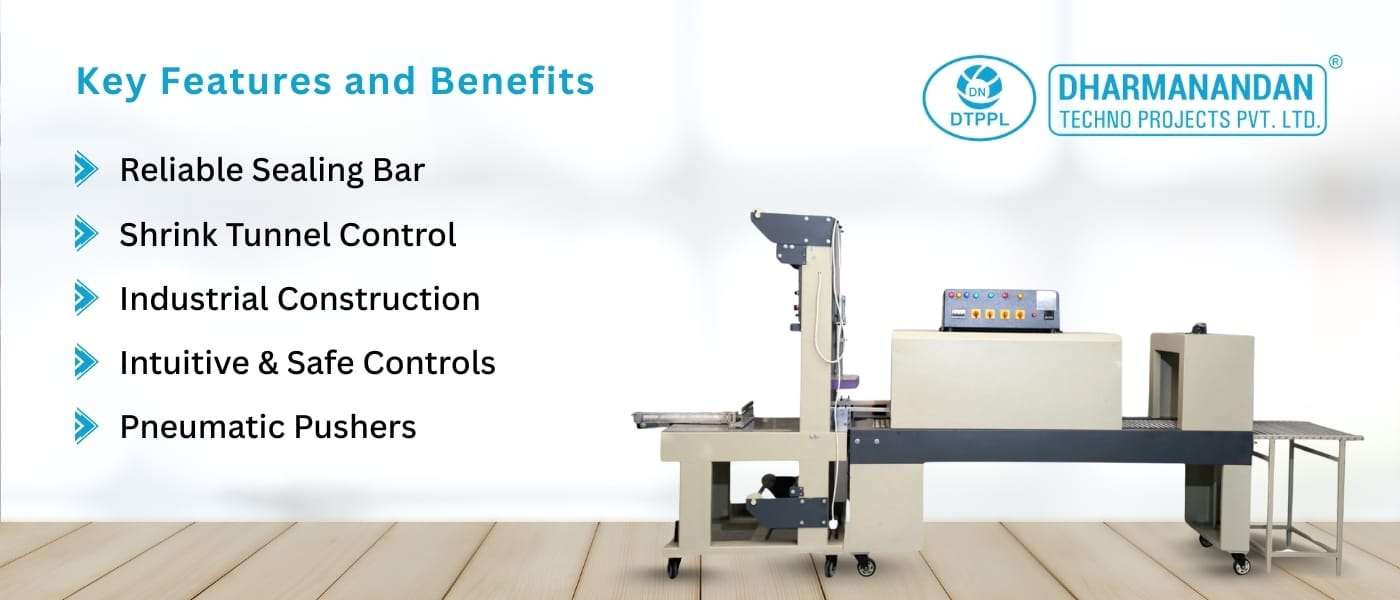

Key Features and Benefits Explained
- Reliable Sealing Bar for PE Film
- Why it Matters: Seals thicker bundling films without tearing or overheating.
- Result: Minimizes package failures, ensuring each bundle is secure through distribution.
- Precision-Controlled Shrink Tunnel
- Why it Matters: Adjustable temperature and belt speed allow shrink customization.
- Result: Delivers neat, uniform bundles across varying film grades and pack sizes.
- Industrial-Grade Construction
- Why it Matters: Built to withstand high usage, powder-coated MS offers durability while SS options resist corrosion in moist environments.
- Result: Longer machine life, lower maintenance, and consistent uptime.
- Intuitive Controls with Safety Features
- Why it Matters: Simplified operations mean less training and fewer errors. Safety features protect operators.
- Result: Faster adaptation, safer workplace, and dependable daily performance.
- Integrated Pneumatic Pushers
- Why it Matters: Assists the manual collation process, offering repeatable accuracy.
- Result: Improves operator comfort and speeds up sealing cycles.
Strategic Advantages for Expanding Operations
- Affordability with Efficiency: Semi-automatic machines cost significantly less than fully automatic systems but still deliver a major productivity upgrade from manual methods.
- Better Handling and Distribution: Bundles are simpler to transport, stack, and store—cutting logistics issues and reducing breakage.
- Retail-Ready Appearance: Professionally wrapped packs enhance shelf appeal and streamline retail operations.
- Durability in Transit: The PE film acts as a protective barrier, shielding bottles from dust and moisture.
- Scalable Investment: Start with semi-auto, and as business scales, this unit can serve smaller production runs or alternate product lines even after full automation is introduced.
- Lower Labor Demand: One operator can produce more than traditional manual wrapping methods, reducing labor cost per unit.
- ROI Optimization: Bundled advantages lower costs, minimal product damage, and faster packing boost profit margins.
Final Thoughts: Smart Steps Toward Automation
A Semi-Automatic Shrink Wrapping Machine is more than just a temporary packaging solution it’s a versatile tool designed for scaling businesses. By carefully choosing specifications aligned with your target output, film usage, and operational workflow, you can unlock significant improvements in efficiency, protection, and presentation.
Disclaimer: All technical details are based on standard setups commonly used for PET bottle bundle shrink wrapping with PE film. Actual output (PPM) depends on the operator, bottle stability, and pack formation. Always verify final specs with your preferred equipment supplier before purchasing.
FAQs About Semi-Automatic Shrink Wrapping Machine
The machine is designed for ease of use, with simple controls that allow operators to quickly learn how to load, seal and shrink products. Its compact design makes it easy to integrate into production lines without requiring significant space.
The machine utilizes a continuously heating rubber-coated sealing knife, with a film guard, ensuring secure and durable seals for the wrapped products.
By automating the sealing and shrinking operations after manual product collation, the machine improves efficiency while keeping costs manageable, making it ideal for businesses in the growth phase.
Applications include packaging for water, soda soft drinks, juice, confectionery and pharmaceuticals, offering reliable and efficient packaging solutions for these industries.
Routine maintenance for this machine includes cleaning the sealing area, checking the heater condition and lubricating moving parts. Periodic inspection ensures consistent performance and extends the machine’s service life.
