RO Water Treatment Plant: Engineer’s Guide

May 23, 2025

Designing, operating and maintaining a fully functional RO Water Treatment Plant demands an advanced understanding of its technical architecture. Far from being a simple filtration unit, a RO Plant is a complex system made up of interconnected components – each essential for achieving reliable and high-quality RO Plant Water output. From raw water intake to membrane cleaning protocols, each section in the RO Plant Process plays a critical role in determining plant efficiency, water quality and operational longevity.

This article serves as a comprehensive engineering reference, breaking down the 20 essential sections in the design and operation of a modern RO Water Plant. Tailored for engineers, plant operators and technical professionals, it focuses on how each component functions in real-time operations and why understanding its design matters in achieving optimal system performance.

1. Raw Water Source Analysis for RO Water Treatment Plant

The quality and type of source water form the foundation of the entire system. It can be municipal supply, borewell water, river water or brackish water. Engineers begin with a detailed chemical and microbiological analysis of this raw water.

Key metrics such as total dissolved solids (TDS), turbidity, iron, manganese, hardness and biological load determine the sizing and sequencing of pretreatment equipment. For example, high TDS levels may necessitate specialized Reverse Osmosis Systems with high-rejection membranes, while elevated turbidity requires robust sediment filtration.

2. RO Water Plant Storage Tank Design and Function

A raw water storage tank is more than just a holding vessel. It acts as a buffer, stabilizing variations in water supply and allowing continuous feed into the system. Material selection for the tank – HDPE, SS 304 or FRP – is guided by the water’s chemical profile. The tank includes overflow control, level sensors and manholes for inspection. In systems that run multiple shifts or have variable source availability, this tank is sized generously to offer operational resilience.

3. Feed Pumping System in Reverse Osmosis Plant

This is the first dynamic component of the RO System. The raw water pump moves water from the tank to the filtration units. Designed for precise flow control, these pumps must offer enough pressure to overcome the resistance of the pretreatment units, while ensuring steady delivery to downstream components.

The pump selection process considers flow rate, head loss through piping and filters and energy efficiency. Stainless steel pumps are often preferred for corrosion resistance and Variable Frequency Drives (VFDs) are integrated for energy savings and pressure tuning.

4. Multi-Grade Filtration in RO Water Treatment Plant Process

Before water enters the RO membranes, it undergoes physical filtration to remove suspended particles. The MGF consists of layers of coarse to fine media – gravel, pebbles and sand. This media arrangement removes particles typically above 20 microns.

The system is equipped with an auto or manual backwash mechanism. Periodic backwashing helps prevent clogging and maintains filter efficiency. This section significantly extends membrane life and improves system uptime.

Click Here to Watch Fully Auto 5000 LPH RO Water Plant

5. Activated Carbon Filter in Commercial RO Plant System

Designed for chemical filtration, the ACF removes chlorine, chloramines organic pollutants and odor-causing substances. Chlorine, in particular, can irreversibly damage RO membranes if not properly neutralized.

The filter uses high-quality granular activated carbon (GAC) with high iodine values, enhancing its adsorption capabilities. Like MGF, it features an automated backwash mechanism and a venturi injection system for easy startup and shutdown.

6. Activated Carbon Filter in Commercial RO Plant System

One of the critical chemical treatment stages, this unit ensures the water chemistry is optimized before it enters the RO membranes. The anti-scalant dosing prevents the precipitation of scale-forming salts such as calcium carbonate, calcium sulfate and silica. The pH dosing unit maintains water within the acceptable pH range for membrane protection, typically between 6 and 8.

Precision metering pumps ensure accurate chemical dosing. Engineers calculate dosage based on feed water analysis and system capacity. Improper dosing here can lead to rapid membrane fouling and system failure.

7. Micron Cartridge Filtration in RO Plant Water Pretreatment

This section acts as the final barrier before the water enters the sensitive RO Water Plant. It filters particles in the range of 5 to 1 micron using polypropylene cartridges housed in SS or FRP filter vessels. This step protects the membranes from fine silt, suspended solids and micro-flocs that could bypass earlier filtration stages.

Pressure gauges installed across this unit help monitor clogging. When the pressure drop exceeds design limits, cartridges are replaced to maintain flow and protect membranes.

8. High-Pressure Pumping Mechanism in Reverse Osmosis Systems

The high-pressure pump is the backbone of the RO system, creating the pressure needed for the RO process. This pump forces water through the semi-permeable membrane, overcoming osmotic pressure and allowing only water molecules to pass through.

Pumps in this section are typically multistage centrifugal types made from SS 316 for corrosion resistance. Pressure ratings vary depending on the feed water type. Engineers ensure smooth flow, controlled ramp-up and safety interlocks to prevent dry-run or over-pressurization.

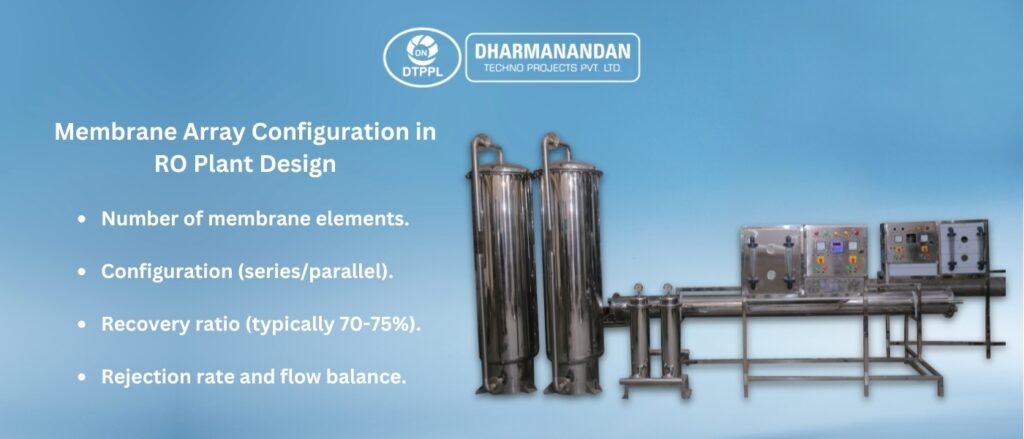

9. Membrane Array Configuration in RO Plant Design

This is the heart of the Industrial RO Plant. Membranes made of polyamide thin-film composite material remove 95-99% of dissolved salts, bacteria, heavy metals and organics. These membranes are housed in pressure vessels, with feed water entering at one end and two streams exiting: permeate (treated water) and reject (concentrated brine).

Engineers must decide on:

• Number of membrane elements
• Configuration (series/parallel)
• Recovery ratio (typically 70-75%)
• Rejection rate and flow balance

Proper design and maintenance of this section directly impact product water quality and membrane life.

Click Here to Watch Fully Automated RO Plant 4000 LPH

10. Pressure Vessels in Reverse Osmosis Plant Construction

Membranes are housed in cylindrical vessels designed to withstand high pressure and prevent contamination. These vessels are made of FRP or SS and rated for pressures up to 300-450 psi.

The design includes permeate tubes, feed spacers and seal kits. Proper installation and alignment are crucial to prevent damage to membranes or misalignment, which could result in inefficient separation or leakage.

11. Permeate Collection in RO System Water Quality Management

Permeate water – low TDS, purified output – is collected from the membrane and directed toward either post-treatment or storage. This section includes TDS meters, flow meters and sampling valves to continuously monitor product water quality.

Real-time data is critical here for plant control. Engineers evaluate water quality to detect membrane fouling, membrane aging or system imbalance.

12. Reject/Brine Handling System in RO Plant Process

The reject stream is the concentrated wastewater carrying removed salts and contaminants. This stream is often directed to:

• Drains
• Evaporation ponds
• Neutralization pits
• Zero Liquid Discharge (ZLD) systems

Concentrated waste is managed to minimize environmental impact. Considerations include:

• Disposal Methods: Options like evaporation ponds, sewer discharge or zero liquid discharge systems.
• Flow Control: Valves and flow meters regulate reject flow rates.
• Environmental Compliance: Systems are designed to meet local discharge regulations.

Flow control valves, flow meters and pressure relief valves are installed here. Engineers must also calculate rejection rates to maintain efficient water recovery and environmental compliance.

13. Post-Treatment Solutions in RO Water Plant Applications

In some applications, additional purification is needed. Post-treatment may include:

• UV Disinfection: Destroys bacteria and viruses.
• Ozonation: Enhances taste and sterilizes water for storage.
• Remineralization: Reintroduces calcium and magnesium for taste and to balance corrosivity.

This step is common in  Commercial RO Water Plants supplying drinking water, food processing or pharmaceuticals.

14. Clean-in-Place (CIP) System in RO Plant Maintenance

Over time, membranes accumulate scale and biological matter. A CIP system enables onsite membrane cleaning using acid and alkaline solutions.

It includes:

• Chemical Tanks: Store cleaning solutions like acids and alkalis.
• Circulation Pumps: Ensure thorough distribution of cleaning agents.

• Heating Elements: Enhance cleaning efficacy by raising solution temperatures.

A CIP cycle involves soaking and recirculation phases, typically triggered when differential pressure or permeate TDS increases beyond normal levels. Engineers create cleaning schedules and track membrane health through performance trends.

Click Here to Watch RO Plant 6000 LPH (SS) Solution

15. RO Water Treatment Plant in Automation and Control Panel

Modern RO Systems are driven by automation for efficiency and safety. The control panel houses:

• Programmable Logic Controllers (PLCs): Automate operations and respond to sensor inputs.
• Human-Machine Interfaces (HMIs): Provide user-friendly system monitoring and control.
• Alarm Systems: Alert operators to anomalies like pressure drops or water quality deviations.

The control system also manages chemical dosing, flushing and auto start/stop cycles. This reduces operator error, improves response times and ensures data logging.

16. RO Plant in Sensor Suite and Instrumentation

Monitoring is critical in RO operation. Sensors are installed at multiple points to monitor and instruments include:

• Pressure Transducers: Monitor pressure at various system points.
• Flow Sensors: Track water movement through the system.

• Conductivity Meters: Assess water purity levels.

This data enables predictive maintenance, performance optimization and regulatory reporting.

17. Electrical System and MCC in RO Plant Supplier

The Motor Control Center (MCC) manages power distribution to all motorized equipment. It includes:

• Circuit Breakers: Protect equipment from electrical faults.
• Starters and Contactors: Control motor operations.
• Emergency Shutdowns: Ensure safety during power anomalies.

Proper electrical design ensures safety, efficiency and fail-safe operation of the entire RO Water Treatment Plant.

18. RO Water Plant in Skid Frame and Structural Assembly

Most commercial RO Plants are modular, assembled on stainless steel skid frames. This design supports:

• Easy transportation
• Plug-and-play installation
• Minimal site work

Proper vibration isolation, load balancing and corrosion-resistant materials are integral to skid design. A robust frame supports system components. Design aspects:

• Material Selection: Corrosion-resistant materials like stainless steel ensure longevity.
• Modular Design: Facilitates transportation and installation.

Vibration Dampening: Protects equipment from mechanical stress.

19. Documentation and Operational Protocols by RO Plant Exporter Standards

Engineers prepare comprehensive documentation, including:

• Standard Operating Procedures (SOPs): Guide routine tasks and emergency responses.
• Maintenance Logs: Track equipment servicing and replacements.
• Training Manuals: Educate personnel on system operations.

This supports training, audits, troubleshooting and preventive maintenance.

20. Maintenance Access in Reverse Osmosis Plants in India

Engineering foresight ensures that each component is accessible for servicing. Adequate clearances, inspection ports, lifting hooks, drain valves and service walkways are planned during layout design. This minimizes downtime and supports safe maintenance routines. Designing for accessibility simplifies maintenance.

Considerations:

• Component Placement: Strategic layout allows easy access to filters, pumps and valves.
• Service Platforms: Provide safe working areas for technicians.
• Utility Connections: Organized piping and wiring streamline operations.

Conclusion

A modern RO Water Treatment Plant is a culmination of chemistry, hydraulics, materials science, automation and practical engineering. Each of these key points contributes uniquely to the process and its integration defines system efficiency, product water quality and long-term viability.

Whether you are an engineer designing a new plant, a technician operating an existing one or a manager optimizing water treatment strategy, understanding these components is essential. DTPPL, as a leading manufacturer, supplier and exporter of RO Water Treatment Plant, offers unmatched purity, reliability and scalability – attributes increasingly critical in industries ranging from food and beverage to healthcare and electronics.
