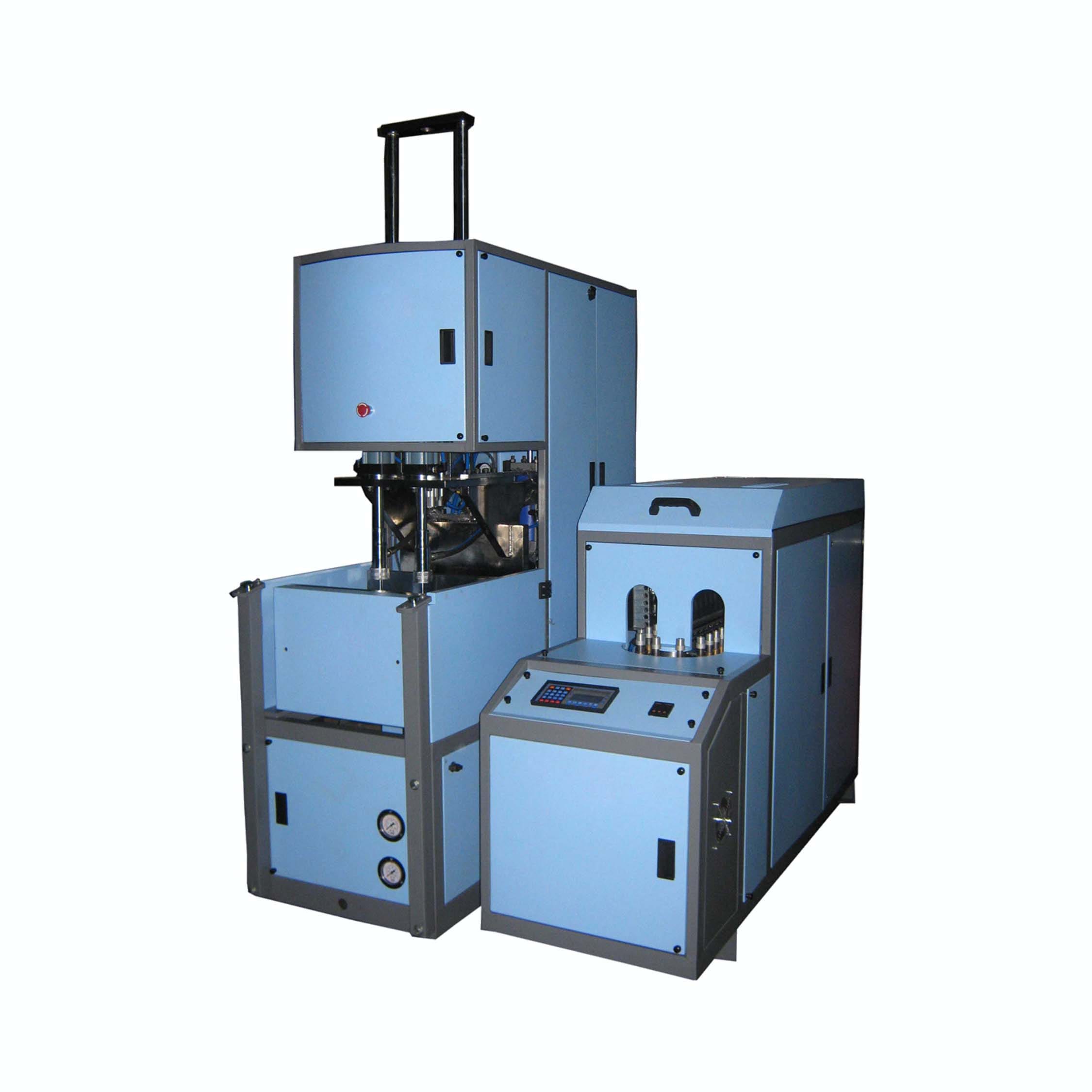

Semi-Automatic PET Blow Moulding Machine
₹399,000.00
Freeze Bottle 800-900 Bph
| SPECIFICATIONS | Unit | 800-900 bph |
| FORMING |
| Cavity Pitch | mm | 150 |
| Mould Thickness (max) | mm | 180 |
| Clamping Stroke (max) | mm | 200 |
| Stretching Stroke (max) | mm | 400 |
| No. of Cavity | Pcs | Two |
| Mould Plate width (max) | mm | 280 |
| PRODUCT |
| Product Height (max) | mm | 350 |
| Container Volume (Min/Max) | ml | 200 /2000 |
| Neck Outer Diameter | mm | 28 – 30 |
| Product Outer Diameter (Max) | mm | 95 |
| Theoretical Production | BPH | 800-900 |
| POWER- 3 Phase,415V |
| FOR BLOWING MACHINE |
| Heater | Kw | 9 |
| Conveyor Motor | Kw | 1 |
| Preform Rotation Motor | Kw | 0.375 |
| FOR ACCESSORIES |
| HP Compressor | Kw | 15 |
| Chiller 2 TR | Kw | 1.875 |
| Refrigerated Air Dryer | Kw | 0.75 |
| Operation Air Pressure | Kg/cm2 | 8 |
| Blowing Air Pressure | Kg /cm2 | 25 |
| DIMENSION |
| BLOW MACHINE (L x W x H) | Inches | 57 x 22 x 90 |
| CONVEYOR (L x W x H) | Inches | 68 x 24 x 48 |
PP/PET
| SPECIFICATIONS | Unit | Semi Auto PP/PET Blow |
| FORMING |
| Cavity Pitch | mm | 130 |
| Mould Thickness (max) | mm | 180 |
| Clamping Stroke (max) | mm | 200 |
| Stretching Stroke (max) | mm | 450 |
| No. of Cavity | Pcs | Single/Two |
| Mould Plate width (max) | mm | 280 |
| PRODUCT |
| Product Height (max) | mm | 350 |
| Container Volume (Min/Max) | ml | 100 /2000 |
| Neck Outer Diameter | mm | 28 |
| Product Outer Diameter (Max) | mm | 95 |
| Theoretical Production (PP/PET) | BPH | 600/ 1100 |
| POWER- 3 Phase,415V |
| FOR BLOWING MACHINE |
| Heater (PP/PET) | Kw | 18/9 |
| Conveyor Motor | Kw | 1 |
| Preform Rotation Motor | Kw | 0.375 |
| FOR ACCESSORIES | | |
| HP Compressor | Kw | 15 |
| Chiller 2 TR | Kw | 1.875 |
| Refrigerated Air Dryer | Kw | 0.75 |
| Operation Air Pressure | Kg/cm2 | 8 |
| Blowing Air Pressure | Kg /cm2 | 25 |
| DIMENSION | | |
| BLOW MACHINE (L x W x H) | Inches | 57 x 22 x 90 |
| CONVEYOR (L x W x H) | Inches | 68 x 24 x 48 |
Auto Dropping 1100 Bph
| SPECIFICATIONS | Unit | 1100bph |
| FORMING |
| Cavity Pitch | mm | 130 |
| Mould Thickness (max) | mm | 180 |
| Clamping Stroke (max) | mm | 200 |
| Stretching Stroke (max) | mm | 450 |
| No. of Cavity | Pcs | Two |
| Mould Plate width (max) | mm | 280 |
| PRODUCT |
| Product Height (max) | mm | 350 |
| Container Volume (Min/Max) | ml | 100 /2000 |
| Neck Outer Diameter | mm | 28 |
| Product Outer Diameter (Max) | mm | 95 |
| Theoretical Production | BPH | 1100 |
| POWER- 3 Phase,415V |
| FOR BLOWING MACHINE |
| Heater | Kw | 9 |
| Conveyor Motor | Kw | 1 |
| Preform Rotation Motor | Kw | 0.375 |
| FOR ACCESSORIES |
| HP Compressor | Kw | 15 |
| Chiller 2 TR | Kw | 1.875 |
| Refrigerated Air Dryer | Kw | 0.75 |
| Operation Air Pressure | Kg/cm2 | 8 |
| Blowing Air Pressure | Kg /cm2 | 25 |
| DIMENSION |
| BLOW MACHINE (L x W x H) | Inches | 57 x 22 x 90 |
| CONVEYOR (L x W x H) | Inches | 68 x 24 x 48 |
| SPECIFICATIONS | Unit | Semi Auto PP/PET Blow |
| FORMING |
| Cavity Pitch | mm | 130 |
| Mould Thickness (max) | mm | 180 |
| Clamping Stroke (max) | mm | 200 |
| Stretching Stroke (max) | mm | 450 |
| No. of Cavity | Pcs | Single/Two |
| Mould Plate width (max) | mm | 280 |
| PRODUCT |
| Product Height (max) | mm | 350 |
| Container Volume (Min/Max) | ml | 100 /2000 |
| Neck Outer Diameter | mm | 28 |
| Product Outer Diameter (Max) | mm | 95 |
| Theoretical Production (PP/PET) | BPH | 600/ 1100 |
| POWER- 3 Phase,415V |
| FOR BLOWING MACHINE |
| Heater (PP/PET) | Kw | 18/9 |
| Conveyor Motor | Kw | 1 |
| Preform Rotation Motor | Kw | 0.375 |
| FOR ACCESSORIES | | |
| HP Compressor | Kw | 15 |
| Chiller 2 TR | Kw | 1.875 |
| Refrigerated Air Dryer | Kw | 0.75 |
| Operation Air Pressure | Kg/cm2 | 8 |
| Blowing Air Pressure | Kg /cm2 | 25 |
| DIMENSION | | |
| BLOW MACHINE (L x W x H) | Inches | 57 x 22 x 90 |
| CONVEYOR (L x W x H) | Inches | 68 x 24 x 48 |
Semi Auto 20ltr Jar Blow
| SPECIFICATIONS | Unit | Semi Auto 20ltr Jar Blow |
| FORMING |
| Mould Thickness (max) | mm | 350 |
| Clamping Stroke (max) | mm | 350 |
| Stretching Stroke (max) | mm | 550 |
| No. of Cavity | Pcs | Single |
| PRODUCT |
| Product Height (max) | mm | 520 |
| Container Volume (Min/Max) | ml | 20000 |
| Neck Outer Diameter | mm | 46 |
| Product Outer Diameter (Max) | mm | 300 |
| Theoretical Production | BPH | 75 |
| POWER- 3 Phase,415V |
| FOR BLOWING MACHINE |
| Heater | Kw | 33 |
| Conveyor Motor | Kw | 1 |
| Preform Rotation Motor | Kw | 0.375 |
| FOR ACCESSORIES |
| HP Compressor | Kw | 15 |
| LP Compressor | Kw | 7.5 |
| Chiller 3 TR | Kw | 2.625 |
| Refrigerated Air Dryer | Kw | 3 |
| Operation Air Pressure | Kg/cm2 | 8 |
| Blowing Air Pressure | Kg /cm2 | 25 |
| DIMENSION | | |
| BLOW MACHINE (L x W x H) | Inches | 112 x 30 x 90 |
| CONVEYOR (L x W x H) | Inches | 102 x 27 x 82 |
Semi Auto 2200bph Two Blow Single Conveyor
| SPECIFICATIONS | Unit | 2200bph Two Blow Single Conveyor |
| FORMING |
| Cavity Pitch | mm | 130 |
| Mould Thickness (max) | mm | 180 |
| Clamping Stroke (max) | mm | 200 |
| Stretching Stroke (max) | mm | 450 |
| No. of Cavity | Pcs | Two |
| Mould Plate width (max) | mm | 280 |
| PRODUCT |
| Product Height (max) | mm | 350 |
| Container Volume (Min/Max) | ml | 100 /2000 |
| Neck Outer Diameter | mm | 28 |
| Product Outer Diameter (Max) | mm | 95 |
| Theoretical Production | BPH | 2200 |
| POWER- 3 Phase,415V |
| FOR BLOWING MACHINE |
| Heater | Kw | 18 |
| Conveyor Motor | Kw | 1 |
| Preform Rotation Motor | Kw | 0.375 |
| FOR ACCESSORIES | | |
| HP Compressor | Kw | 30 |
| Chiller 3 TR | Kw | 2.625 |
| Refrigerated Air Dryer | Kw | 1.25 |
| Operation Air Pressure | Kg/cm2 | 8 |
| Blowing Air Pressure | Kg /cm2 | 25 |
| DIMENSION | | |
| BLOW MACHINE(L x W x H) | Inches | 57 x 22 x 90 |
| CONVEYOR(L x W x H) | Inches | 92 x 27 x 48 |
| SPECIFICATIONS | Unit | Semi Auto 20ltr Jar Blow |
| FORMING |
| Mould Thickness (max) | mm | 350 |
| Clamping Stroke (max) | mm | 350 |
| Stretching Stroke (max) | mm | 550 |
| No. of Cavity | Pcs | Single |
| PRODUCT |
| Product Height (max) | mm | 520 |
| Container Volume (Min/Max) | ml | 20000 |
| Neck Outer Diameter | mm | 46 |
| Product Outer Diameter (Max) | mm | 300 |
| Theoretical Production | BPH | 75 |
| POWER- 3 Phase,415V |
| FOR BLOWING MACHINE |
| Heater | Kw | 33 |
| Conveyor Motor | Kw | 1 |
| Preform Rotation Motor | Kw | 0.375 |
| FOR ACCESSORIES |
| HP Compressor | Kw | 15 |
| LP Compressor | Kw | 7.5 |
| Chiller 3 TR | Kw | 2.625 |
| Refrigerated Air Dryer | Kw | 3 |
| Operation Air Pressure | Kg/cm2 | 8 |
| Blowing Air Pressure | Kg /cm2 | 25 |
| DIMENSION | | |
| BLOW MACHINE (L x W x H) | Inches | 112 x 30 x 90 |
| CONVEYOR (L x W x H) | Inches | 102 x 27 x 82 |
Semi Auto 5ltr Jar Blow
| SPECIFICATIONS | Unit | 2200bph Two Blow Single Conveyor |
| FORMING |
| Cavity Pitch | mm | 130 |
| Mould Thickness (max) | mm | 180 |
| Clamping Stroke (max) | mm | 200 |
| Stretching Stroke (max) | mm | 450 |
| No. of Cavity | Pcs | Two |
| Mould Plate width (max) | mm | 280 |
| PRODUCT |
| Product Height (max) | mm | 350 |
| Container Volume (Min/Max) | ml | 100 /2000 |
| Neck Outer Diameter | mm | 28 |
| Product Outer Diameter (Max) | mm | 95 |
| Theoretical Production | BPH | 2200 |
| POWER- 3 Phase,415V |
| FOR BLOWING MACHINE |
| Heater | Kw | 18 |
| Conveyor Motor | Kw | 1 |
| Preform Rotation Motor | Kw | 0.375 |
| FOR ACCESSORIES | | |
| HP Compressor | Kw | 30 |
| Chiller 3 TR | Kw | 2.625 |
| Refrigerated Air Dryer | Kw | 1.25 |
| Operation Air Pressure | Kg/cm2 | 8 |
| Blowing Air Pressure | Kg /cm2 | 25 |
| DIMENSION | | |
| BLOW MACHINE(L x W x H) | Inches | 57 x 22 x 90 |
| CONVEYOR(L x W x H) | Inches | 92 x 27 x 48 |
| SPECIFICATIONS | Unit | Semi Auto 20ltr Jar Blow |
| FORMING |
| Mould Thickness (max) | mm | 350 |
| Clamping Stroke (max) | mm | 350 |
| Stretching Stroke (max) | mm | 550 |
| No. of Cavity | Pcs | Single |
| PRODUCT |
| Product Height (max) | mm | 520 |
| Container Volume (Min/Max) | ml | 20000 |
| Neck Outer Diameter | mm | 46 |
| Product Outer Diameter (Max) | mm | 300 |
| Theoretical Production | BPH | 75 |
| POWER- 3 Phase,415V |
| FOR BLOWING MACHINE |
| Heater | Kw | 33 |
| Conveyor Motor | Kw | 1 |
| Preform Rotation Motor | Kw | 0.375 |
| FOR ACCESSORIES |
| HP Compressor | Kw | 15 |
| LP Compressor | Kw | 7.5 |
| Chiller 3 TR | Kw | 2.625 |
| Refrigerated Air Dryer | Kw | 3 |
| Operation Air Pressure | Kg/cm2 | 8 |
| Blowing Air Pressure | Kg /cm2 | 25 |
| DIMENSION | | |
| BLOW MACHINE (L x W x H) | Inches | 112 x 30 x 90 |
| CONVEYOR (L x W x H) | Inches | 102 x 27 x 82 |
- Compact Design for Space Saving.
- Hydraulic Clamping System & Stretching System.
- Infrared Conveyorised Preheating System.
- High quality valves, cylinders for trouble free production.
- Incremental Heater Settings by 1% to 99%
- PLC Based on 16 Bid Micro Controller (Phillips XAG.49) Display interface via 320 x 240 graphic display process online.
- One Set of Neck Holder 28MM
- Set of Tools and Operation Manual.
- Air and Water Cooling Festo Plumbing System Push & Pull.
- M.S Plates Are Nicrome Plated to Avoid Rust
Excellence with DTPPL Semi-Automatic PET Blow Molding Machines
At DTPPL, we take pride in offering a premium selection of semi-automatic PET blow molding machines that stand out for their quality and efficiency. Our machines are designed to meet the diverse needs of industries requiring precise and reliable blow molding solutions. With advanced pneumatic and hydro-pneumatic technologies integrated into our machines, we ensure that our clients receive superior performance and faster output. As a leading Semi Auto Blow Moulding Machine Manufacturer, Exporter, and Supplier, DTPPL is committed to delivering products that exceed industry standards.
High Performance Semi-Automatic PET Blow Molding Machines and Efficiency
Our Semi-Automatic PET Blow Molding Machines are engineered to provide exceptional performance while maintaining ease of use. The semi-automatic functionality allows for precise control over the molding process, ensuring that every product meets the highest quality standards. These machines are perfect for producing PET bottles and containers with varying capacities, making them a versatile choice for a wide range of applications. By combining pneumatic and hydro-pneumatic systems, our blow molding machines offer both speed and accuracy, optimizing production efficiency and reducing operational costs.
Key Features of Semi-Automatic PET Blow Molding Machines
- Versatile Production: Capable of molding PET containers and bottles of different sizes and shapes.
- Advanced Technology: Equipped with both pneumatic and hydro-pneumatic systems for enhanced performance and faster output.
- Quality Assurance: Designed to ensure high-quality output with minimal defects and consistent results.
- User-Friendly Operation: Simplified controls and automation features for ease of use and minimal training requirements.
- Durability: Built with high-quality materials to ensure long-lasting performance and reliability.
Why Choose DTPPL’s Semi Automatic Blow Moulding Machines?
Choosing DTPPL as your Semi Auto PET Blow Molding Machine supplier means opting for top-notch quality and innovation. Our machines are crafted with precision and designed to meet the evolving needs of the blow molding industry. As a prominent Semi Automatic Blow Moulding Machine Manufacturer, we prioritize your production needs by offering machines that not only enhance productivity but also ensure excellent product quality. With our semi-automatic PET Blow Molding machines, you can expect reliable performance and a substantial return on investment, thanks to their efficiency and durability.
By selecting DTPPL, you’re investing in a solution that combines advanced technology with practical functionality, ensuring that your manufacturing process is streamlined and cost-effective. Explore our range of semi-automatic PET blow molding machines today and experience the difference in quality and efficiency that only DTPPL can provide.
