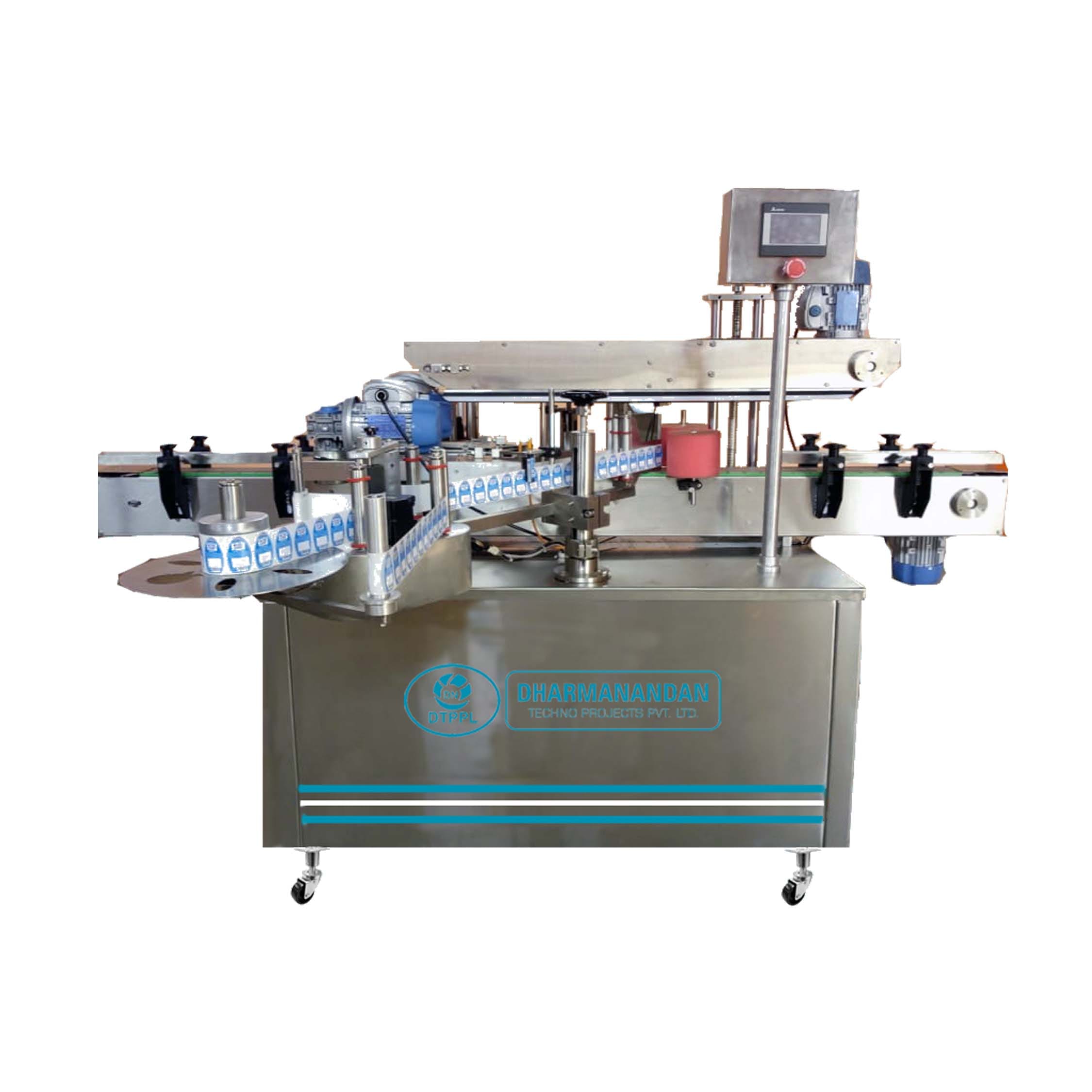

Automatic Sticker Labelling Machine
₹449,000.00
90bpm (one Side)
DESCRIPTION | DTPPL/OST/90BPM |
Product | Square Pet Bottle for Mineral Water |
Product Size | Pet Square Bottle : 200ml,250ml,300ml,500ml, 1000ml |
Speed | Up to 90 BPM |
Sticker Side | One Side |
Working Height | 850±50mm |
I/P Power Supply | 1 Phase, 230 V AC, 50/60 HZ |
System | Stepper Motor & Driver |
Power Load | 1.0 KW |
Conveyor Length | 6 Feet, Chain conveyor |
Conveyor Motor & Gear Box | Motor: 0.5HP Gear Box : 40:1 |
Product sensor | Fiber optics with amplifier |
Label Gap Sensor | Fork sensor |
Overall Dimension | 1830mm L X 600mm W X 1200mm H Approx. |
Weight | 200 Kgs. |
120bpm (one Side)
DESCRIPTION | DTPPL/OST/120BPM |
Product | Square Pet Bottle for Mineral Water |
Product Size | Pet Square Bottle : 200ml,250ml,300ml,500ml, 1000ml |
Speed | Up to 120 BPM |
Sticker Side | One Side |
Working Height | 850±50mm |
I/P Power Supply | 1 Phase, 230 V AC, 50/60 HZ |
System | Servo Motor & Driver |
Power Load | 1.0 KW |
Conveyor Length | 6 Feet, Chain conveyor |
Conveyor Motor & Gear Box | Motor: 0.5HP Gear Box : 40:1 |
Product sensor | Fiber optics with amplifier |
Label Gap Sensor | Fork sensor |
Overall Dimension | 1830mm L X 600mm W X 1200mm H Approx. |
Weight | 200 Kgs. |
Automatic Sticker Labeling Machine – Round Bottle
DESCRIPTION | DTPPL/STL/RB |
Brand | DTPPL |
Motor | Stepper |
Label accuracy | ±1mm |
Direction Of Movement | Left to right |
Output / Minutes | Up to 60-90 bottles per minute (As per customer requirement) |
Electrical Motor | 2 HP |
Height Of Conveyer | 860 mm to 910 mm |
Power Characteristics | 230 volts ac 50 Hz |
Construction | Top stainless steel matt finish & SS Pipe structure is covered with SS 304 sheet. |
Compressor Air | No Require |
Electrical supply | 3 Phase + Neutral + Earthling |
Electrical Load | 1 KW |
Overall Dimension | 1830mm L X 600mm W X 1200mm H Approx. |
Weight | 200 Kgs. |
90bpm (two Side)
DESCRIPTION | DTPPL/TST/90BPM |
Product | Square Pet Bottle for Mineral Water |
Product Size | Pet Square Bottle : 200ml,250ml,300ml,500ml, 1000ml |
Speed | Up to 90 BPM |
Sticker Side | Two Side |
Working Height | 850±50mm |
I/P Power Supply | 1 Phase, 230 V AC, 50/60 HZ |
System | Stepper Motor & Driver |
Power Load | 1.0 KW |
Conveyor Length | 6 Feet, Chain conveyor |
Conveyor Motor & Gear Box | Motor: 0.5HP Gear Box : 40:1 |
Product sensor | Fiber optics with amplifier |
Label Gap Sensor | Fork sensor |
Overall Dimension | 1830mm L X 600mm W X 1200mm H Approx. |
Weight | 200 Kgs. |
120bpm (two Side)
DESCRIPTION | DTPPL/TST/120BPM |
Product | Square Pet Bottle for Mineral Water |
Product Size | Pet Square Bottle : 200ml,250ml,300ml,500ml, 1000ml |
Speed | Up to 120 BPM |
Sticker Side | Two Side |
Working Height | 850±50mm |
I/P Power Supply | 1 Phase, 230 V AC, 50/60 HZ |
System | Servo Motor & Driver |
Power Load | 1.0 KW |
Conveyor Length | 6 Feet, Chain conveyor |
Conveyor Motor & Gear Box | Motor: 0.5HP Gear Box : 40:1 |
Product sensor | Fiber optics with amplifier |
Label Gap Sensor | Fork sensor |
Overall Dimension | 1830mm L X 600mm W X 1200mm H Approx. |
Weight | 250 Kgs. |
- The unit is made compact & versatile as per GMP norms.
- Applicator controlled by PLC.
- Various label position adjustment with help of sliding pipe assembly.
- Imported sensor makes leuze/sick, Made in Germany.
- All automation parts like VFD, SMPS Make delta.
- PLC Controlled system.
- Specially design dispenser for label release.
- All moving parts cover by safety guard.
- User friendly & very less maintenance.
- Machine is suitable for square container, square bottle.
- Specially provide top conveyor belt for bottle guide.
DTPPL Sticker Labeling Machine
DTPPL is renowned as a leading manufacturer, exporter, and supplier of the Sticker Labeling Machine, engineered for exceptional efficiency and precision in diverse labeling applications. Our cutting-edge machine is fully automatic and integrates innovative features to simplify and expedite the labeling process, making it an indispensable tool for various industries.
Key Features of Sticker Labeler
- Automated Roller Spacing Device: The Sticker Labeling Machine is equipped with a sophisticated roller spacing device that eliminates the need for change parts. This feature ensures seamless transitions between different label sizes, enhancing operational efficiency.
- Smart Label Length Detection: The machine features an automated label length detection system, which removes the need for manual input and storage of label length data. This intelligent system enables quick and hassle-free adjustments, reducing downtime and boosting productivity.
- User-Friendly Interface: Controlled through an intuitive touch-screen interface, the machine simplifies the labeling process, making it easy for operators to handle label changes and adjust settings with minimal training.
- Enhanced Production Efficiency: By automating label adjustments and minimizing downtime, the Sticker Labeling Machine significantly increases production rates. This efficiency is vital for meeting the high demands of large-scale labeling operations.
- Versatility: Designed to handle a wide range of label sizes and types, the machine is adaptable to various products and industries, providing flexible labeling solutions.
Sticker Labelling Machine Applications
- Food and Beverage Industry: Perfect for accurately labeling bottles, cans, and packages, ensuring consistent branding and compliance.
- Pharmaceutical Industry: Ideal for labeling medication bottles, vials, and containers with precision, maintaining regulatory standards.
- Cosmetics Industry: Suitable for labeling a variety of cosmetic products, including jars, tubes, and bottles, enhancing product presentation.
- Household Products: Efficiently labels cleaning agents, detergents, and other household items, ensuring clear and durable labeling.
Benefits of Sticker Labeling Machine
- Time and Cost Savings: The automated label length detection and roller spacing device eliminate manual adjustments, saving valuable time and reducing operational costs.
- Increased Production Efficiency: The machine’s capability to swiftly adapt to different label sizes and minimize downtime leads to higher production throughput.
- Precision and Consistency: Guarantees accurate and consistent labeling, improving the overall appearance and quality of labeled products.
- Ease of Use: The user-friendly interface makes it easy for operators to manage the labeling process, decreasing training time and enhancing operational efficiency.
- Flexibility: Handles various label sizes and types, making it versatile for different labeling needs across multiple industries.
Why Choose DTPPL?
- Industry Expertise: With extensive experience in manufacturing high-quality labeling machines, DTPPL is a trusted industry leader.
- Global Distribution: We export our Sticker Labeling Machines to numerous countries, including Nigeria, Cameroon, Saudi Arabia, Qatar, UAE, Democratic Republic of Congo, South Africa, Egypt, Kenya, Ghana, Angola, Uganda, Rwanda, Benin, Liberia, and Gabon.
- Innovative Solutions: Our commitment to innovation ensures that our machines feature the latest technological advancements, addressing the evolving demands of the market.
- Rigorous Quality Control: DTPPL machines undergo stringent quality control processes to meet the highest standards of performance and reliability.
- Customer-Focused Approach: We provide customized solutions and comprehensive support to meet our clients’ specific needs, ensuring their satisfaction.
- Comprehensive After-Sales Support: Our robust after-sales support includes installation, maintenance, and technical assistance, ensuring smooth operation and long-term reliability of our machines.
DTPPL’s Sticker Labeling Machine is a sophisticated and efficient solution for precise and versatile labeling applications. With features such as automated label length detection, a roller spacing device, and an intuitive user interface, it delivers outstanding performance and reliability. Its high production efficiency and adaptability make it an essential asset for various industries. Choose DTPPL for superior labeling machines that enhance productivity, ensure product quality, and provide exceptional support and reliability.
