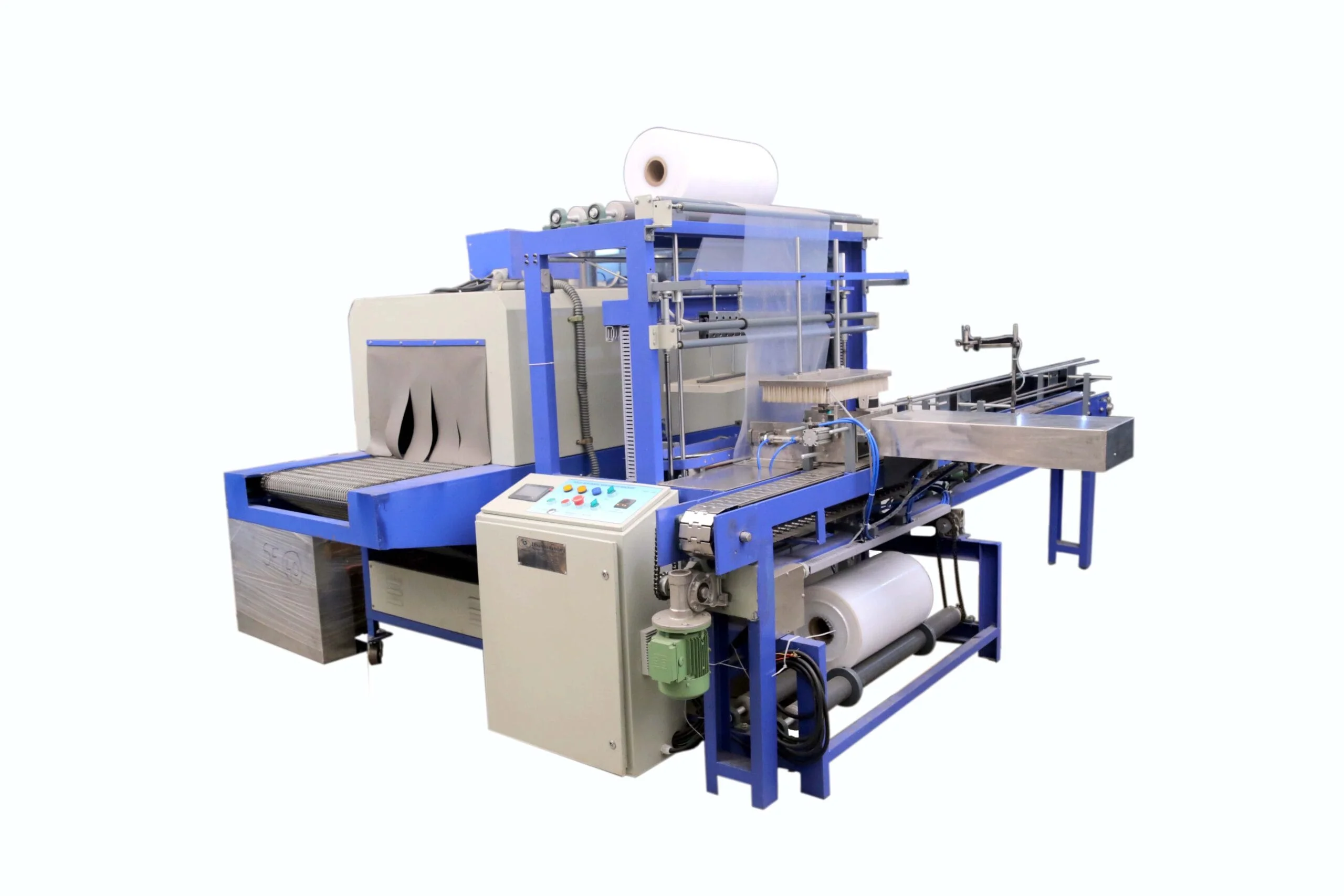

Automatic Shrink Wrapping Machine

849,000.00

Get A Quote
Category:

DTPPL/SWM/FA-60BPM

DESCRIPTIONModel No: DTPPL/SWM/FA-60BPM
Sealing Dimension24” (Inch) sealing arm for front sealer.
Power Consumption1 KW
Power Supply440V
Machine Output5 Packs/Minute (12 Bottle)
Infeed ConveyorThis frame is in square pipe.
Sealing KnifeContinuously heating Teflon Coated Sealing Knife 16”Long with film Guard.
Pneumatics PartsCylinder, Solenoid Valve ,FRL ,Flow Control Valve, Tubing
Heater Specification1 KW Tubular Heater for fast heating.
Control PanelContactors, Proxy switch, Rotary switch & Photo Cell with Digital Timer & Digital Temperature Controller AC Drive.
Top UnwindingAuto unwinding with Pneumatic Cylinders
Film Carriage RollerFully Stainless Steel material with buffing
Air ConsumptionConstant Air Pressure 100 PSI
Conveyor BeltMS Plated Chain CONVEYOR
TUNNEL CONVEYOR
Motor1 HP AC Motor
Tunnel Opening24” W x 20” H
Heater Specification600mm Long 1 KW Stainless Steel tube fined heater.
TOTAL DIMENTION                                                                               (Web-Sealer With Shrink Tunnel)3350mm (L) x 825mm (W) x 1900mm (H)
Ac Motor  Specification1 HP 2800 RPM motor with 7” Impeller
Cooling ZoneCooling Fan for Fast Cooling.
Idler ConveyorFor Idling the Product
Client Scope3Hp Air Compressor
Infeed Conveyor LineSINGLE

DTPPL/SWM/FA-90BPM

DESCRIPTIONModel No: DTPPL/SWM/FA-90BPM
Sealing Dimension             24” (Inch) sealing arm for front sealer.
Power Consumption        1 KW
Power Supply                       440V
Machine Output                 7-8 Packs/Minute (12 Bottle)
Infeed ConveyorThis frame is in square pipe.
Sealing Knife                        Continuously heating Teflon Coated Sealing Knife 16”Long with film Guard.
Pneumatics PartsCylinder, Solenoid Valve ,FRL ,Flow Control Valve, Tubing
Heater Specification    1 KW Tubular Heater for fast heating.
Control Panel                Contactors, Proxy switch, Rotary switch & Photo Cell with Digital Timer & Digital Temperature Controller AC Drive.
Top Unwinding                  Auto unwinding with Pneumatic Cylinders
Film Carriage Roller   Fully Stainless Steel material with buffing
Air Consumption              Constant Air Pressure 100 PSI
Conveyor Belt                   MS Plated Chain CONVEYOR
TUNNEL CONVEYOR
Motor1 HP AC Motor
Tunnel Opening                  24” W x 20” H
Heater Specification     600mm Long 1 KW Stainless Steel tube fined heater.
TOTAL DIMENTION                                                                               (Web-sealer with Shrink Tunnel)3350mm (L) x 825mm (W) x 1900mm (H)
Ac Motor  Specification1 HP 2800 RPM motor with 7” Impeller
Cooling Zone                        Cooling Fan for Fast Cooling.
Idler Conveyor                   For Idling the Product
Client Scope3Hp Air Compressor
Infeed Conveyor LineTWO

DTPPL/SWM/FA-120BPM

DESCRIPTIONModel No: DTPPL/SWM/FA-120BPM
Sealing Dimension             24” (Inch) sealing arm for front sealer.
Power Consumption        1 KW
Power Supply                       440V
Machine Output                 10 Packs/Minute (12 Bottle)
Infeed ConveyorThis frame is in square pipe.
Sealing Knife                        Continuously heating Teflon Coated Sealing Knife 16”Long with film Guard.
Pneumatics PartsCylinder, Solenoid Valve ,FRL ,Flow Control Valve, Tubing
Heater Specification    1 KW Tubular Heater for fast heating.
Control Panel                Contactors, Proxy switch, Rotary switch & Photo Cell with Digital Timer & Digital Temperature Controller AC Drive.
Top Unwinding                  Auto unwinding with Pneumatic Cylinders
Film Carriage Roller   Fully Stainless Steel material with buffing
Air Consumption              Constant Air Pressure 100 PSI
Conveyor Belt                   MS Plated Chain CONVEYOR
TUNNEL CONVEYOR
Motor1 HP AC Motor
Tunnel Opening                  24” W x 20” H
Heater Specification     600mm Long 1 KW Stainless Steel tube fined heater.
TOTAL DIMENTION                                                                               (Web-Sealer With Shrink Tunnel)3350mm (L) x 825mm (W) x 1900mm (H)
Ac Motor  Specification1 HP 2800 RPM motor with 7” Impeller
Cooling Zone                        Cooling Fan for Fast Cooling.
Idler Conveyor                   For Idling the Product
Client Scope3Hp Air Compressor
Infeed Conveyor LineFOUR
  • M.S. with Powder coating construction including main machine frame.
  • Modular Slat chain conveyor with automatic Matrix converted system.
  • Fully automatic with high speed operate.
  • Min. change over time one size to other size of container.
  • Fully Password protected.
  • Fast cooling system after shirking which provide perfect shape & finishing of product.
  • Built in A.C. Freq. Drive system.
  • Output up to 7-8 Packs labels per minute.
  • Suitable for Glass, Plastic, Pet, Tin, Corrugated containers.

DTPPL Automatic Shrink Wrapping & Packaging Machines

DTPPL is a distinguished manufacturer, exporter, and supplier of Automatic Shrink Wrapping & Packaging Machines. Our cutting-edge machines are meticulously designed to enhance packaging efficiency and reliability across a wide array of industries. We take pride in exporting our advanced shrink wrapping and packaging solutions to countries such as Nigeria, Cameroon, Saudi Arabia, Qatar, UAE, Democratic Republic of Congo, South Africa, Egypt, Kenya, Ghana, Angola, Uganda, Rwanda, Benin, Liberia, and Gabon.

Key Features of Shrink Wrap and Packaging Machine

  • Comprehensive Automation: Our Automatic Shrink Wrapping & Packaging Machines are fully automated, ensuring a seamless and uninterrupted packaging process. This full automation minimizes the need for manual intervention, leading to a more streamlined and efficient production line.
  • High-Speed Operation: These machines are engineered for high-speed performance, significantly boosting productivity by rapidly and accurately wrapping and packaging products.
  • Versatility in Application: The design of our machines allows them to handle a diverse range of products, from single items to bundled packages. They can easily accommodate various shapes and sizes, making them highly versatile.
  • Robust Construction: Constructed with high-quality materials, our shrink wrapping machines are built for durability and long-term performance, even in the most demanding industrial environments.
  • Sophisticated Control Systems: Equipped with advanced control systems, including intuitive touch-screen PLCs, our machines offer precise control over the wrapping and packaging process, ensuring uniform quality and consistency.
  • Energy Efficiency: Designed with energy efficiency in mind, our machines help reduce operational costs while minimizing environmental impact.

Shrink Wrap and Packing Machine Applications

  • Food and Beverage Industry: Ideal for securely wrapping and packaging bottles, cans, and other containers, ensuring they are ready for transport and retail.
  • Pharmaceutical Industry: Perfect for packaging pharmaceutical products, providing protection against contamination and ensuring product integrity.
  • Cosmetics Industry: Suitable for packaging a variety of cosmetic products, maintaining their quality and enhancing their presentation.
  • Household Products: Efficiently wraps and packages household items such as cleaning agents and detergents, ensuring they are protected and ready for distribution.

Benefits of Auto Shrink Wrapping and Packaging Machine

  • Boosted Productivity: The full automation and high-speed capabilities of our machines lead to significant productivity gains, enabling faster processing and turnaround times.
  • Uniform Quality: Advanced control systems ensure that each product is wrapped and packaged consistently, improving overall product quality and appearance.
  • Operational Flexibility: The versatile design allows our machines to handle various product types and sizes, making them suitable for a wide range of applications.
  • Cost Savings: Energy-efficient operation and reduced manual labor requirements result in lower operational costs, providing long-term financial benefits.
  • Ease of Use: User-friendly interfaces and automated processes make the machines simple to operate, reducing the need for extensive training and ensuring smooth workflow integration.

Why Choose DTPPL?

  • Industry Expertise: With extensive experience in manufacturing high-quality packaging machines, DTPPL is a trusted leader in the field, known for our innovative and reliable solutions.
  • Global Presence: We have a strong global presence, exporting our Automatic Shrink Wrapping & Packaging Machines to numerous countries, ensuring dependable service and support worldwide.
  • Technological Innovation: Our commitment to staying at the forefront of technology ensures that our machines incorporate the latest advancements, meeting the evolving demands of the market.
  • Stringent Quality Control: Each DTPPL machine undergoes rigorous quality control to meet the highest standards of performance and durability.
  • Tailored Solutions: We offer customized solutions and comprehensive support to meet the specific needs of our clients, ensuring optimal satisfaction and efficiency.
  • Exceptional After-Sales Support: Our robust after-sales support includes installation, maintenance, and technical assistance, guaranteeing the longevity and reliable performance of our machines.

DTPPL’s Automatic Shrink Wrapping & Packaging Machines are designed to provide efficient and reliable solutions for a wide range of packaging needs. With features such as comprehensive automation, high-speed operation, versatility, and advanced control systems, these machines deliver superior performance and consistency. Their ability to enhance productivity, ensure product protection, and provide operational flexibility makes them an invaluable asset across various industries. Choose DTPPL for high-quality packaging machines that drive efficiency, ensure product integrity, and offer exceptional support and reliability.
